Introduction
What is 3CX
3CX is an open-standard, software-based IP PBX phone system that enables VoIP voice calls, video conferencing, live chat, and SMS. It offers flexible deployment options, including on-premise, cloud, or self-hosted environments.
One of its key advantages is its cost-effective licensing model, which is based on concurrent calls rather than per-user fees, making it a scalable solution for businesses of all sizes.
For more details, visit: https://www.3cx.com/
Handle Telephony Features Directly from Uniconnect.AI
Once the integration between 3CX and Uniconnect.AI is successfully established, it unlocks a wide range of powerful telephony capabilities directly within the Uniconnect platform. This allows users to manage and control voice operations without needing to switch between systems.
Key Capabilities

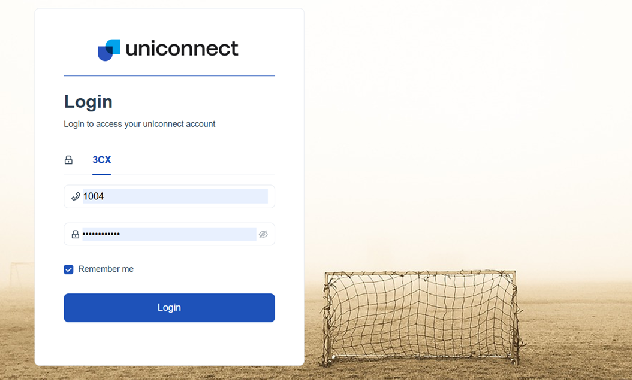

1. Single Sign-On (SSO) The integration enables seamless authentication using 3CX credentials:
- Users can log in to Uniconnect using their existing 3CX accounts
- Eliminates the need for multiple login credentials
- Simplifies access for agents, especially in contact center environments
2. Quick Call Control Functions Users can handle essential call operations directly from Uniconnect, including:

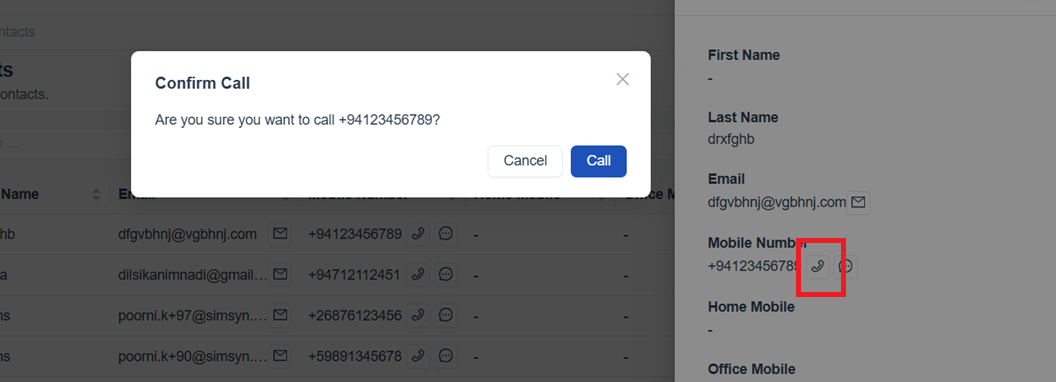

- Call origination directly from CRM modules.
Direct calling from the CRM is a powerful feature that enables users to instantly connect with customers in a single click. This functionality is automatically available for all phone numbers stored within the system, making communication faster and more efficient.
However, before using this feature, it is essential to properly configure the required outbound rules within the 3CX system. These rules ensure that calls are routed correctly and successfully connected.
- Call monitoring (depending on configuration)
This centralized control enhances efficiency and reduces dependency on the 3CX interface.
3. Agent Productivity & Workforce Management Uniconnect enhances operational control with:
- User status management (e.g., available, busy, offline)
- Activity tracking and performance insights
- Workforce optimization capabilities

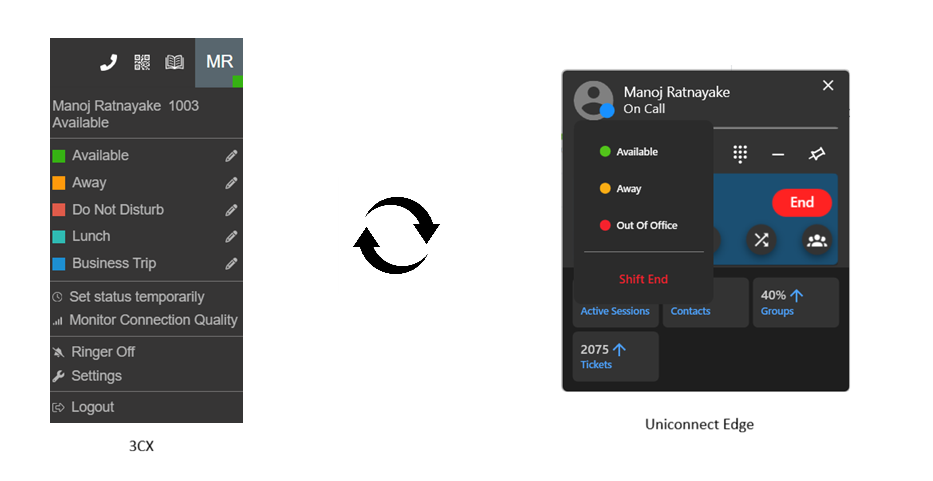

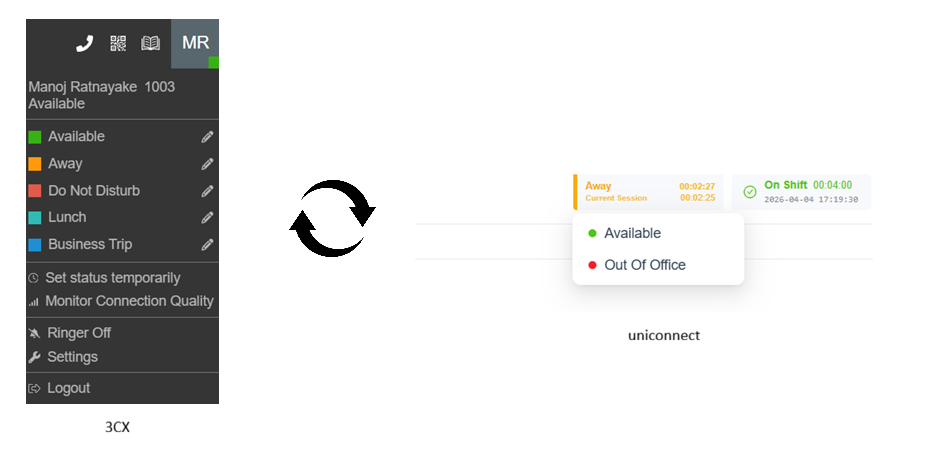

A key capability of this integration is centralized presence control, which plays an important role in improving user productivity.Users can update their availability status (e.g., Available, Away, Do Not Disturb) directly from:
- Uniconnect.AI
- Uniconnect Edge
These changes are instantly reflected in 3CX, without requiring users to access any 3CX client applications.
Upon integration between 3CX and Uniconnect.AI, presence status synchronization is enabled by default. However, not all statuses from either platform are automatically mapped to the corresponding status on the other side, as this depends on the configuration settings of both systems.
For more details on presence status configuration, please refer to the User Productivity Configurations section.

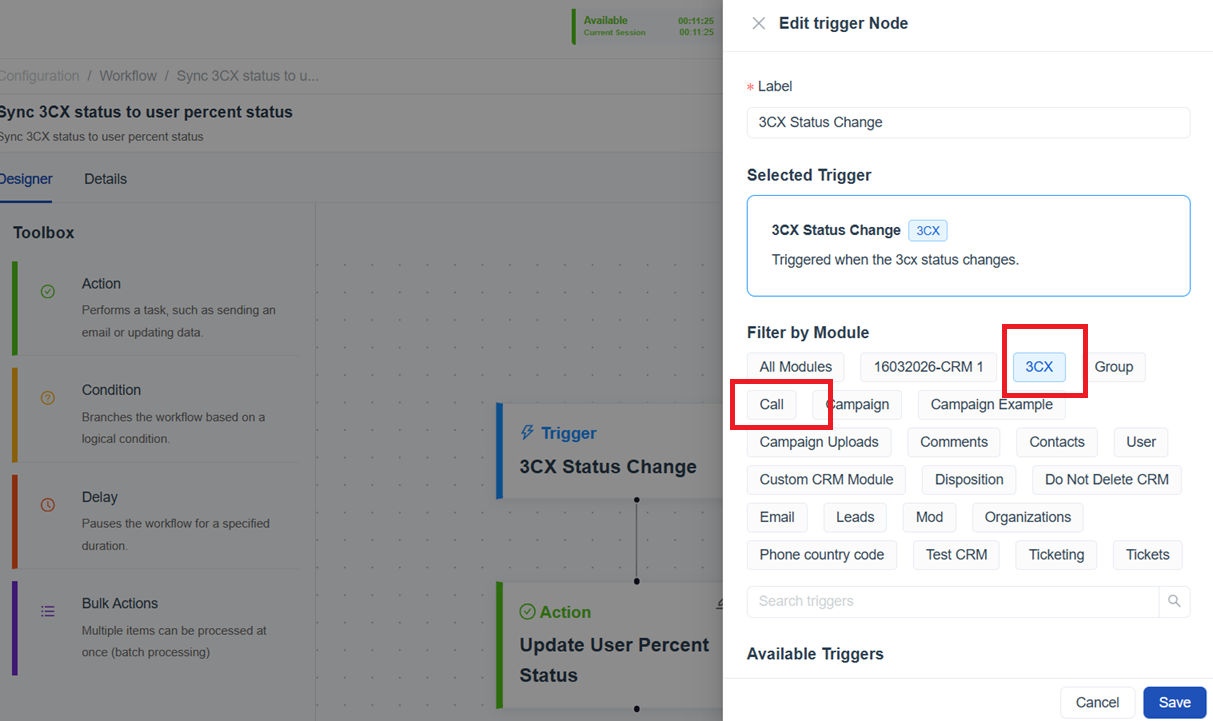

4. Workflow Automation with Telephony Triggers The integration allows you to build powerful workflows by leveraging telephony events:
- Trigger actions based on call events, user status changes (e.g., incoming call, missed call, Presence)
- Automate business processes
- Seamlessly control 3CX-related activities from within Uniconnect
Uniconnect.AI is a comprehensive customer engagement platform that unifies multiple communication channels, automation, and telephony into a single system. It provides powerful Actions and Triggers within its workflow automation module, enabling users to design and manage complex workflows that incorporate telephony operations.
The platform integrates seamlessly with 3CX once the integration is enabled. Call events and user status changes can be used as triggers within Uniconnect workflows, allowing for dynamic and responsive automation.
With meaningful actions—including call-related operations such as call-out actions—users can design advanced workflows tailored to their needs. Telephony is no longer treated as a separate, independent module; instead, it is fully embedded within the automation framework for a more unified and efficient experience.
5. Full Compatibility with Uniconnect Campaigns & Uniconnect Edge
- Uniconnect Campaigns: Enables outbound calling campaigns with integrated voice capabilities
3CX is fully compatible with Uniconnect.AI Voice Campaigns, enabling calls to be initiated through the 3CX telephony platform without requiring direct access to the 3CX backend interface.
For end users and agents, calls can be managed using either 3CX applications or Uniconnect Edge, depending on operational preferences.
- Uniconnect Edge (Unified Agent Desktop): Provides a centralized interface for agents to manage all interactions, including voice
Uniconnect Edge is a Windows-based soft client application that provides a unified agent desktop experience for call handling, analytics, and agent productivity monitoring.The telephony plugin is a mandatory prerequisite for Uniconnect Edge and must be enabled and properly configured before launching the application.
3CX telephony is fully supported by Uniconnect Edge.
6. Call Reports and Dashboards Uniconnect provides enhanced visibility into telephony activities through:
- Real-time dashboards
- Historical call reports
- Performance analytics
As part of the 3CX and Uniconnect.AI integration, users can access comprehensive call-related insights directly within the Uniconnect platform—eliminating the need to log into the 3CX system separately.
This includes both real-time and historical reporting through intuitive dashboards, enabling users to monitor ongoing activities as well as analyze past performance.
One of the most valuable aspects of this integration is its ability to deliver unified analytics. Beyond just call data, Uniconnect allows users to combine telephony insights with data from other modules, providing a holistic view of operations.
This unified visibility helps organizations:
- Track agent performance and productivity
- Monitor call volumes and trends
- Identify operational bottlenecks
- Make informed, data-driven decisions
Overall, the integration transforms reporting into a centralized, powerful analytics experience—giving users clear and actionable insights across the entire platform.
Summary
By integrating 3CX with Uniconnect.AI, organizations can transform their telephony operations into a unified, intelligent communication system—improving agent productivity, streamlining workflows, and delivering better customer experiences through a single platform.
Disclaimer
3CX is a third-party platform and its features, APIs, and integration procedures may change from time to time without prior notice.
It is strongly recommended to:
- Regularly review both 3CX and Uniconnect.AI release notes
- Validate compatibility before applying updates
Failure to do so may result in integration conflicts or disruption of functionality.
Switching the 3CX configuration from one instance to another 3CX instance—or migrating to a different telephony platform—can lead to a complete reset of telephony-related data within the Uniconnect.AI platform.
In such cases:
- A fresh configuration may be required
- Existing telephony data may not be recoverable
- The system may need to be reinitialized with a new dataset
Ensure proper planning and backups before making such changes.
